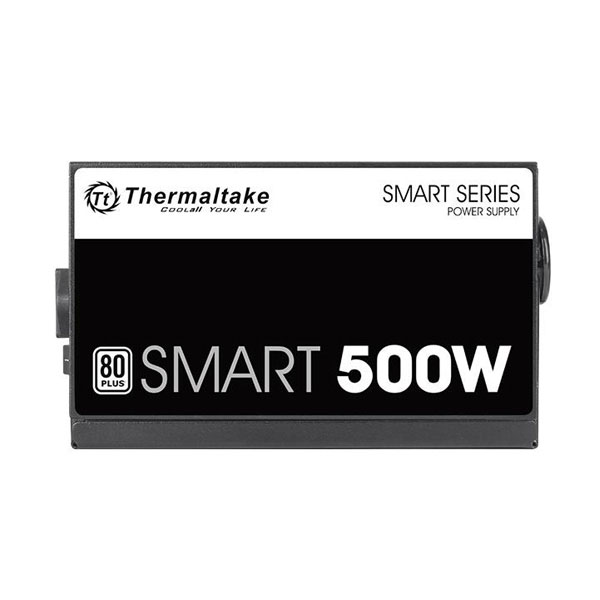

Thermaltake Smart 500W Incorporating various high-quality components, the Smart Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance. 120mm Ultra Quiet Fan Smart Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Multiple Connectors Smart 500W connector’s specification as below: 80 PLUS Standard Certified and Haswell Ready Smart Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® Standard Certified.
High-Quality Components High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage. Single +12V Output Smart Series is equipped with a powerful +12V rail, superior performance under all types of system loading.

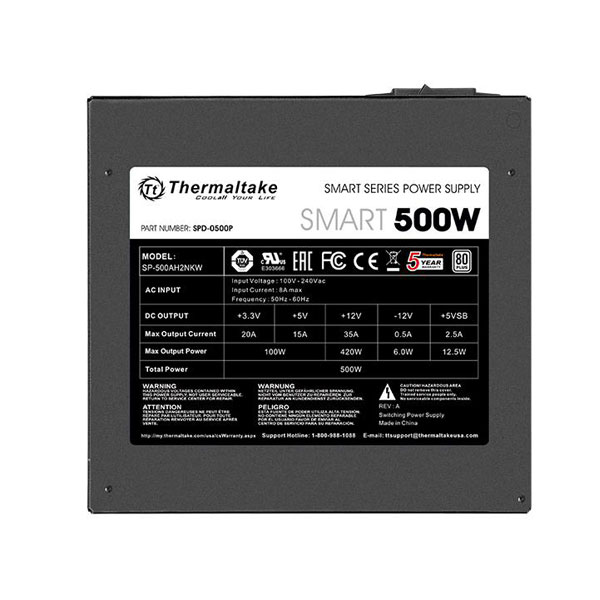

ESPECIFICACIONES TÉCNICAS:
P/N PS-SPD-0500NPCW-W Short P/N SPD-0500P
Model SP-500AH2NKW
Type Intel ATX 12V 2.3
Max. Output Capacity 500W Color Black
Dimension (H x W x D) 86mm x 150mm x 140mm
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time 16msec (minimum) within 60% load
Input current 8A max
Input Frequency Range 50 Hz - 60 Hz
Input Voltage 100Vac – 240Vac Operating Temperature 5℃ to +40℃ Operating Humidity 20% to 85%,non-condensing Operating Temperature -40 ℃ to +55 ℃ Operating Humidity 10% to 95%, non-condensing
Cooling System 120mm Fan: 1800 R.P.M. ± 10% Efficiency 82-86% efficiency @ 20-100% load
MTBF 100,000 hrs minimum
Safety Approval CE/CB/TUV/ UL/ FCC
PCI-E Connector PCI-E 6+2pin x 2
